| PTFE coated Glass fabric |
|
 |
|
| |
SUECO is specialized in thermal and electrical insulation jacket materials. Especially we are focusing on protecting the human, robot and machines for safety and efficiency. We are supplying inner and outer (coated)fabrics, films, insulation mat, sewing thread and the hook and loop for the protective jackets. We cam make a new type of PTFE coated glass fabric for your challenging applications.
|
|
|
| Para aramid, Meta aramid, PPS, Phenolic, LCP, Polyimide, PBI, PTFE, PEEK, PBO, OxyPAN Hybrid, E-glass, S-glass, Basalt, Silica, Metal, Carbon, Quartz, Alumina, Ceramic, SIC, UHMW-PD, High strength PP |
|
| |
|
| |
ㆍInsulation & Protection cover
- Petrochemical pipe line
- Storage tank and pipe line
- Power generation equipment |
|
|
| |
ㆍTransportation insulation
- Car parts protection
- Ship insulation , low temperature and UV
- Train insulation |
|
|
| |
ㆍEV & Battery cover
- Energy efficiency
- Fire suppression and preventing the spread of fire |
|
|
| |
ㆍHeating Jacket
- Explosion proof jacket heater
- Jacket heater of liquid and gas line
- Tank and chamber heater |
|
|
| |
ㆍRobot jacket and clothes |
|
|
|
|
| |
| |
Characteristic of PTFE coated glass fabric |
|
|
| |
ㆍOutstanding wide temperature resistance up to +260°C
ㆍExcellent chemical resistance (ptfe side)
ㆍHigh dielectric strength
ㆍEasily sewn
ㆍResistance to UV
ㆍNon flammable
ㆍVarious color ,flexibility, width and length available
ㆍMade in Korea
ㆍFast shipment and reliable quality control serve. |
|
| |
|
.jpg)
[크게보기] |
|
SUPG40SSG(S) |
Color
|
Grey (Single side) |
Weave Style |
Satin |
Max Temperature |
250℃ |
Thickness |
0.40mm ± 0.02 |
Weight |
610g/sqm ± 30 |
Tensile Strength |
>4,000N/5cm (Warp) |
Tear Strength |
>100N (Warp) |
Standard Roll Length |
50m |
Standard Width |
1.5m |
|
|
|
[크게보기] |
|
SUPG40SSG(H) |
Color
|
Grey (Single side) |
Weave Style |
Satin |
Max Temperature |
250℃ |
Thickness |
0.40mm ± 0.02 |
Weight |
610g/sqm ± 30 |
Tensile Strength |
>4,000N/5cm (Warp) |
Tear Strength |
>100N (Warp) |
Standard Roll Length |
50m |
Standard Width |
1.5m |
|
|
| |
[크게보기] |
|
SUPG40SSG(D) |
Color
|
Grey (Both side) |
Weave Style |
Satin |
Max Temperature |
250℃ |
Thickness |
0.40mm ± 0.02 |
Weight |
740g/sqm ± 30 |
Tensile Strength |
>4,000N/5cm (Warp) |
Tear Strength |
>100N (Warp) |
Standard Roll Length |
50m |
Standard Width |
1.5m |
|
|
| |
|
| |
[크게보기] |
|
SUPG40TSW |
Color
|
White |
Weave Style |
Twill |
Max Temperature |
250℃ |
Thickness |
0.34mm ± 0.02 |
Weight |
530g/sqm ± 30 |
Tensile Strength |
>1,000N/5cm (Warp) |
Tear Strength |
>25N (Warp) |
Standard Roll Length |
50m |
Standard Width |
1.2m |
|
|
| |
[크게보기] |
|

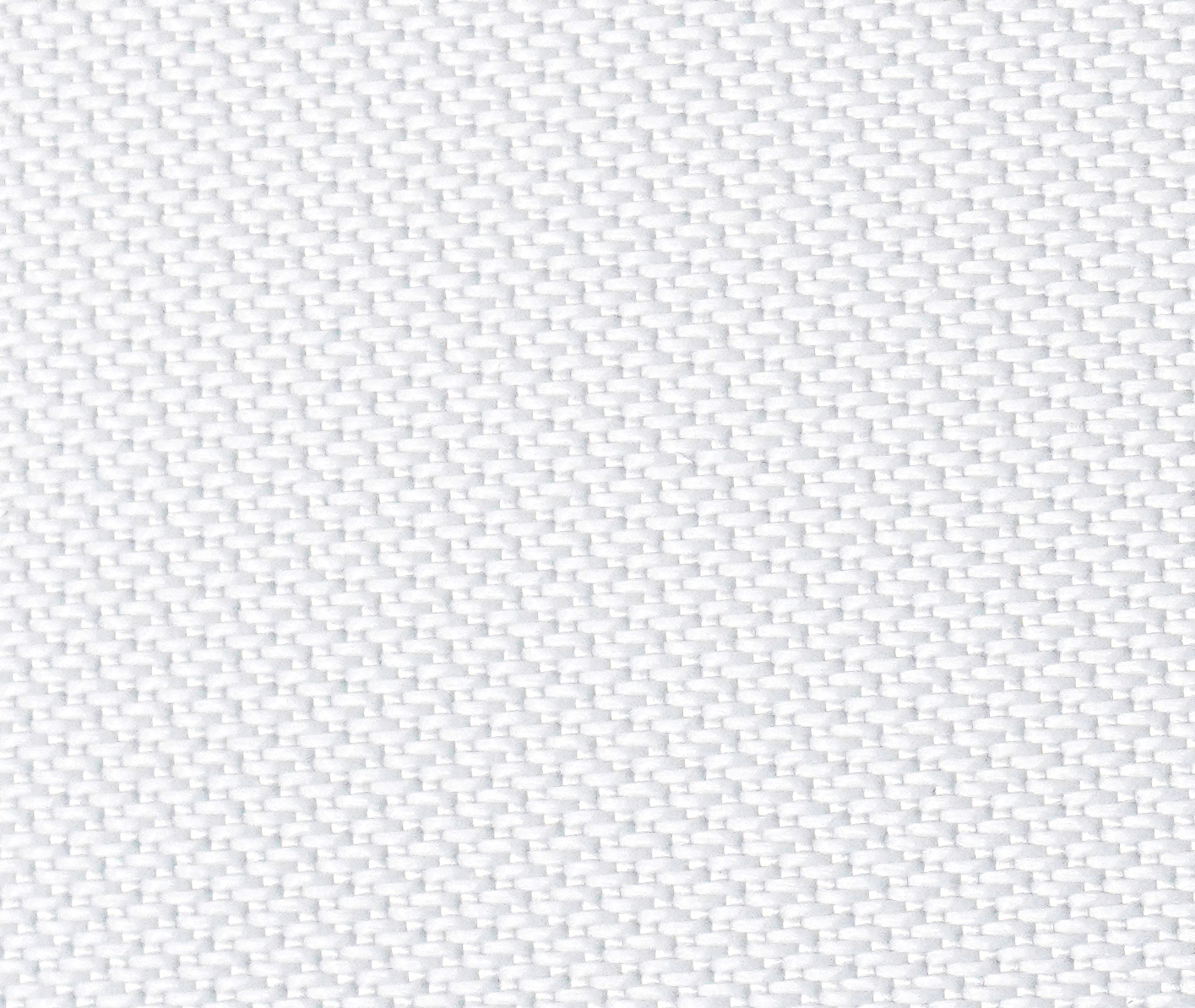

SUPG40SSW |
Color
|
White |
Weave Style |
Satin |
Max Temperature |
250℃ |
Thickness |
0.35mm ± 0.02 |
Weight |
560g/sqm ± 20 |
Tensile Strength |
>2,500N/5cm (Warp) |
Tear Strength |
>50N (Warp) |
Standard Roll Length |
50m |
Standard Width |
1.5m |
|
|
| |
[크게보기] |
|
SUPG13PLW |
Color
|
White |
Weave Style |
Plain |
Max Temperature |
250℃ |
Thickness |
0.10mm ± 0.02 |
Weight |
220g/sqm ± 30 |
Tensile Strength |
>1,000N/5cm (Warp) |
Tear Strength |
>12N (Warp) |
Standard Roll Length |
50m |
Standard Width |
1.0m / 1.2m |
|
|
| |
[크게보기] |
|
SUPG13TMW |
Color
|
White |
Weave Style |
Twill |
Max Temperature |
250℃ |
Thickness |
0.13mm ± 0.02 |
Weight |
260g/sqm ± 10 |
Tensile Strength |
>1,400N/5cm (Warp) |
Tear Strength |
>30N (Warp) |
Standard Roll Length |
50m |
Standard Width |
1.5m |
|
|
| |
[크게보기] |
|
SUPG18PSW |
Color
|
White |
Weave Style |
Plain |
Max Temperature |
250℃ |
Thickness |
0.17mm ± 0.01 |
Weight |
275g/sqm ± 10 |
Tensile Strength |
>1,200N/5cm (Warp) |
Tear Strength |
>40N (Warp) |
Standard Roll Length |
50m |
Standard Width |
1.0m / 1.2m |
|
|
| |
[크게보기] |
|
SUPG10PSW |
Color
|
White |
Weave Style |
Plain |
Max Temperature |
250℃ |
Thickness |
0.10mm ± 0.01 |
Weight |
195g/sqm ± 10 |
Tensile Strength |
>1,000N/5cm (Warp) |
Tear Strength |
>12N (Warp) |
Standard Roll Length |
50m |
Standard Width |
1.0m / 1.2m |
|
| |
|
|
| |
|
|
|
